Ocean Craft Marine Aluminum boats are made of marine grade Aluminum. All parts of the boat are cut on a CNC machine for exceptionally immaculate surface edges. The hull has 2 reverse chines from each side of the boat to provide stability, dryness of the ride, and lower planning speeds. Under the chines, you can find 4 lifting strakes, 2 from each side of the hull to reduce the drag and give more support to the hull.

Built strong, the Ocean Craft Marine Aluminum boat is practically unsinkable. The exclusive FoamShield®hull is filled with infused waterproof foam to add rigidity, stability and floatability if a hull breach ever occurred. It also reduce vibration and dampen noise. The self-bailing deck that works completely on gravity will make sure that if ever the hull was filled with water, it would drain instantly.

Moreover, the exclusive Hyb foam® D tube gives the boat ultimate buoyancy and stability in any condition.

aluminium rhibs

1

Fully Customizable boat designed as per your needs.

2

Design tested on special Naval architect software to assess and optimize vessel performance.

3

Design analysed with a wind tunnel software.

4

Only Marine Grade Aluminum Sheets are used.

5

Sheets are cut by robotic medical grade CNC machines equipment with the best tolerances in the industry.

6

No wood construction, Full Aluminum (Flooring & Transom).

7

Hull infused with waterproof foam for added rigidity, stability and flotability.

Stability at rest Dryness of ride Lower planning speeds
Enhanced directional stability

Reduce the wetted surface area and drag to give
more support to the hull

Aluminium-hull-3

The hull is filled with infused waterproof foam to add rigidity, stability
and floatability if a hull breach ever occurred. It also reduce vibration and dampen noise.

Exclusive-Aluminium-Hull-2

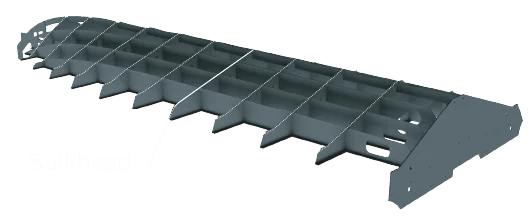

bulkhead-3

lifting-strakes-3

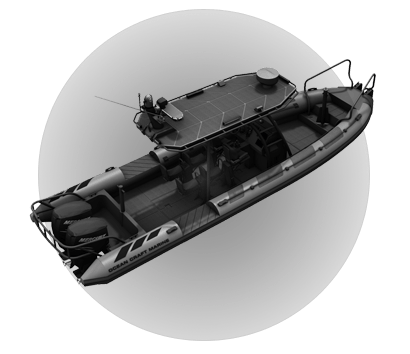

Ocean Craft Marine designs and manufactures customized Rigid Inflatable Boats (RIBs) to meet each customer’s specific needs. Explore our interactive render to see all the available options for customizing every inch of the boat, from the cabin to the deck. Simply click on a section to see the options and choose the ones that best suit your needs. Our goal is always to exceed customer expectations and meet unmet needs

ALUMINIUM BOATS

13 M

11.5 M

9.5 M

8.5 M

7.6 M

6.5 M

13 M

Length Overall
12.5 m – 41′

Beam Overall
3.9 m – 12’8″

Lightship Weight
6,765 kg – 14,914 Ibs

Payload
2,315 kg – 5,104 Ibs

Collar
Hyb Foam®

Tube Diameter
0.56 m – 1’10”

Rec. Power
3×400 hp

Max. Power Allowed
3×450 hp

Max. Speed
109 km/h – 68 mph

Max. Fuel Capacity
317 US Gal – 1200 Ltr

No of Pax
18

Propulsion
Outboard / Inboard

13 M

Length Overall
12.5 m – 41′
Beam Overall
3.9 m – 12’8″
Lightship Weight
6,765 kg – 14,914 Ibs
Payload
2,315 kg – 5,104 Ibs
Collar
Hyb Foam®
Tube Diameter
0.56 m – 1’10”

Rec. Power
3×400 hp
Max. Power Allowed
3×450 hp
Max. Speed
109 km/h – 68 mph
Max. Fuel Capacity
317 US Gal – 1200 Ltr
No of Pax
18
Propulsion
Outboard / Inboard

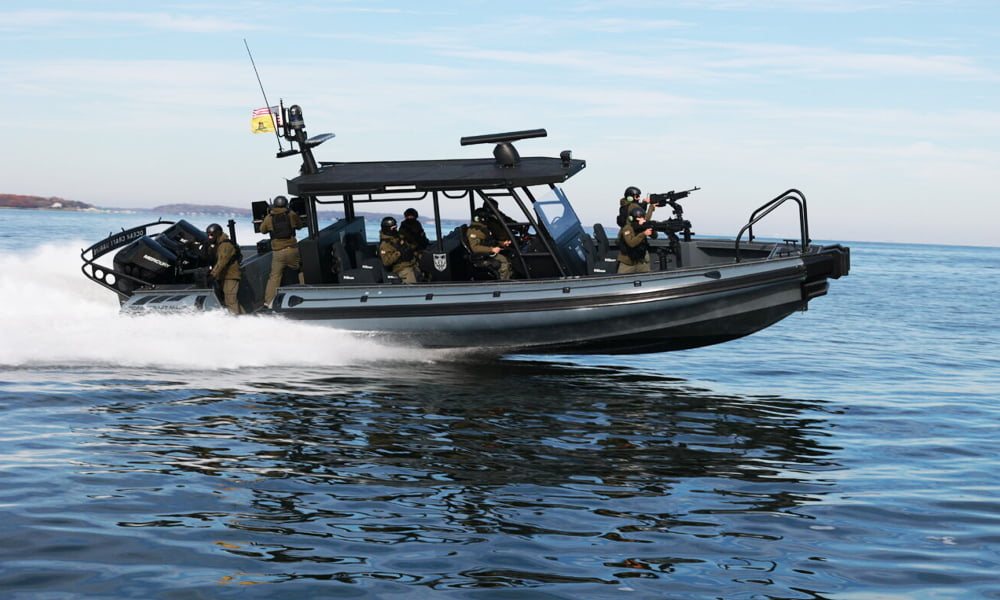

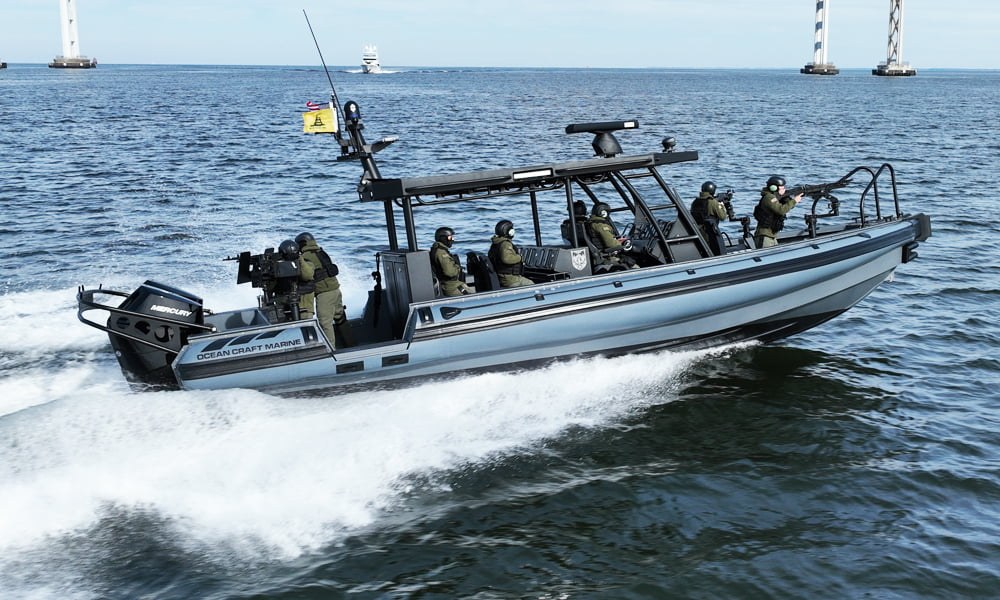

11.5 M

Length Overall
11.6 m – 38′

Beam Overall
3.95 m – 12’12”

Lightship Weight
4,745 kg – 10,461 Ibs

Payload
2,195 kg – 4,839 Ibs

Collar
Hyb Foam®

Tube Diameter
0.56 m – 1’10”

Rec. Power
3×400 hp

Max. Power Allowed
3×400 hp

Max. Speed
102 km/h – 63 mph

Max. Fuel Capacity
317 US Gal – 1200 Ltr

No of Pax
14

Propulsion
Outboard / Inboard

11.5 M

Length Overall
11.6 m – 38′
Beam Overall
3.95 m – 12’12”
Lightship Weight
4,745 kg – 10,461 Ibs
Payload
2,195 kg – 4,839 Ibs
Collar
Hyb Foam®
Tube Diameter
0.56 m – 1’10”

Rec. Power
3×400 hp
Max. Power Allowed
3×400 hp
Max. Speed
102 km/h – 63 mph
Max. Fuel Capacity
317 US Gal – 1200 Ltr
No of Pax
14
Propulsion
Outboard / Inboard

9.5 M

Length Overall
9.5 m – 31’2″

Beam Overall
3.17 m – 10’5″

Lightship Weight
3,520 kg – 7,760 Ibs

Payload
1,430 kg – 3,153 Ibs

Collar
Hyb Foam®

Tube Diameter
0.56 m – 1’10”

Rec. Power
2×225 hp

Max. Power Allowed
2×300 Hp

Max. Speed
102 km/h – 63 mph

Max. Fuel Capacity
158 US Gal – 600Ltr

No of Pax
12

Propulsion
Outboard / Inboard

9.5 M

Length Overall
9.5 m – 31’2″
Beam Overall
3.17 m – 10’5″
Lightship Weight
3,520 kg – 7,760 Ibs
Payload
1,430 kg – 3,153 Ibs
Collar
Hyb Foam®
Tube Diameter
0.56 m – 1’10”

Rec. Power
2×225 hp
Max. Power Allowed
2×300 Hp
Max. Speed
102 km/h – 63 mph
Max. Fuel Capacity
158 US Gal – 600Ltr
No of Pax
12
Propulsion
Outboard / Inboard

8.5 M

Length Overall
8.5 m – 27’11”

Beam Overall
3.17 m – 10’5″

Lightship Weight
3,060 kg – 6,746 Ibs

Payload
1,210 kg – 2,668 Ibs

Tube Diameter
Hyb Foam®

Collar
0.56 m – 1’10”

Rec. Power
2×225 hp

Max. Power Allowed
2×300 Hp

Max. Speed
102 km/h – 63 mph

Max. Fuel Capacity
120 US Gal – 455 Ltr

No of Pax
10

Propulsion
Outboard / Inboard

8.5 M

Length Overall
8.5 m – 27’11”
Beam Overall
3.17 m – 10’5″
Lightship Weight
3,060 kg – 6,746 Ibs
Payload
1,210 kg – 2,668 Ibs
Tube Diameter
Hyb Foam®
Collar
0.56 m – 1’10”

Rec. Power
2×225 hp
Max. Power Allowed
2×300 Hp
Max. Speed
102 km/h – 63 mph
Max. Fuel Capacity
120 US Gal – 455 Ltr
No of Pax
10
Propulsion
Outboard / Inboard

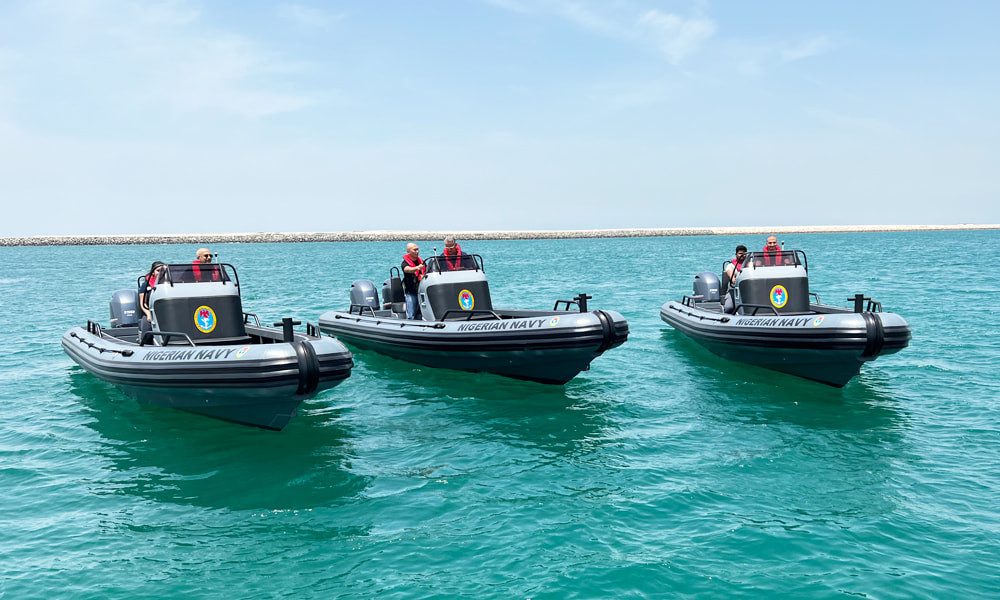

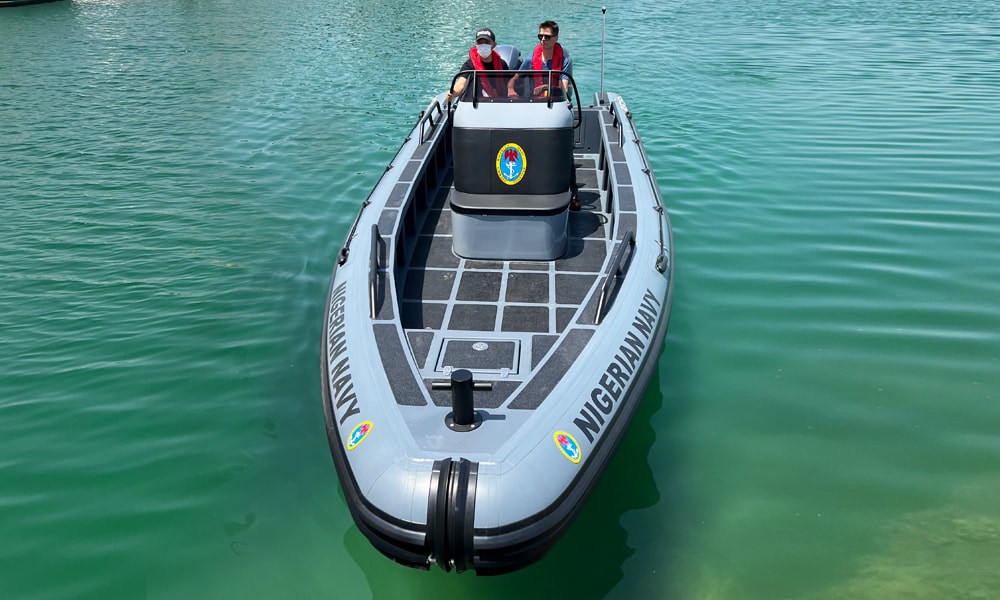

7.6 M

Length Overall
7.6 m – 24’11”

Beam Overall
2.59 m – 8’6″

Lightship Weight
2,207 kg – 4,866 Ibs

Payload
988 kg – 2,178 Ibs

Collar
Hyb Foam®

Tube Diameter
0.45 m – 1’6″

Rec. Power
2×150 hp

Max. Power Allowed
2×225 Hp

Max. Speed
100 km/h – 62 mph

Max. Fuel Capacity
66 US Gal – 250 Ltr

No of Pax
8

Propulsion
Outboard / Inboard

7.6 M

Length Overall
7.6 m – 24’11”
Beam Overall
2.59 m – 8’6″
Lightship Weight
2,207 kg – 4,866 Ibs
Payload
988 kg – 2,178 Ibs
Collar
Hyb Foam®
Tube Diameter
0.45 m – 1’6″

Rec. Power
2×150 hp
Max. Power Allowed
2×225 Hp
Max. Speed
100 km/h – 62 mph
Max. Fuel Capacity
66 US Gal – 250 Ltr
No of Pax
8
Propulsion
Outboard / Inboard

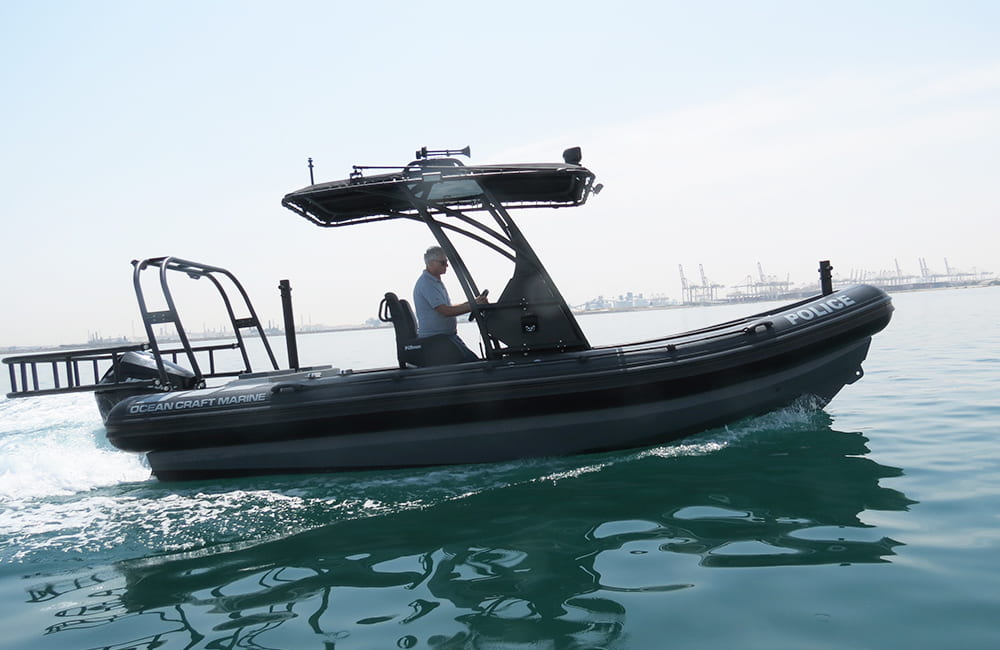

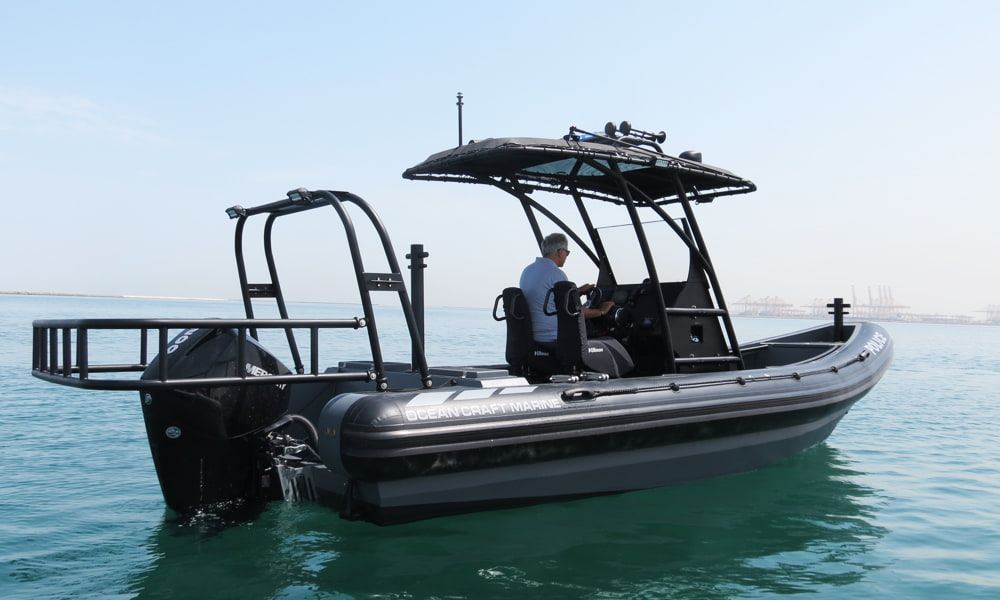

6.5 M

Length Overall
6.5 m – 21’4″

Beam Overall
2.59 m – 8’6″

Lightship Weight
1,440 kg – 3,175 Ibs

Payload
640 kg – 1,411 Ibs

Collar
Hyb Foam®

Tube Diameter
0.45 m – 1’6″

Rec. Power
150 hp

Max. Power Allowed
250 hp

Max. Speed
89 km/h – 55 mph

Max. Fuel Capacity
59 US Gal – 225 Ltr

No of Pax
6

Propulsion
Outboard / Inboard

6.5 M

Length Overall
6.5 m – 21’4″
Beam Overall
2.59 m – 8’6″
Lightship Weight
1,440 kg – 3,175 Ibs
Payload
640 kg – 1,411 Ibs
Collar
Hyb Foam®
Tube Diameter
0.45 m – 1’6″

Rec. Power
150 hp
Max. Power Allowed
250 hp
Max. Speed
89 km/h – 55 mph
Max. Fuel Capacity
59 US Gal – 225 Ltr
No of Pax
6
Propulsion
Outboard / Inboard

OCEAN CRAFT MARINE Aluminum Boats

Ocean Craft Marine Aluminum boats are made of marine grade Aluminum. All parts of the boat are cut on a CNC machine for exceptionally immaculate surface edges.

Reverse Chines
Lifting Strakes
Exclusive FoamShield®Aluminum Hull
