OCEAN CRAFT MARINE MILITARY Boats

Ocean Craft Marine’s Military Grade Rigid Hull Inflatable Boats (RHIBs) are designed and built for the demanding needs of today’s military mariners. Mission survivability and mission success are the bedrock principles that guide our team in constructing boats that exceed the most demanding needs of today’s military fighters.

Whether you need a Navy Patrol boat, a Special Operations Assault Vessel, an Anti-Piracy interdiction craft or a Riverine Combat Craft, we promise to deliver an outstanding product that is built to perform and achieve. We work closely with all our military customers to continuously improve and develop our designs to guarantee every new Ocean Craft Marine Boat exhibits the latest innovation in the military technology.

  • Fiberglass boat or Aluminum boat
  • Air filled tubes or our exclusive Hyb foam® tubes.
  • Hypalon or PU tubes
  • Stern-notch launch/recovery capabilities and multiple davit or single lifting point arrangements.
  • Customizable deck and seating arrangements
  • Amphibious capabilities available.



ENQUIRE NOW

NAVY / COAST GUARD BOATS

NAVY / COAST GUARD BOATS

SPECIAL OPS/ ANTI-PIRACY BOATS

RIVERINE BOATS

RIVERINE BOATS

SPECIAL OPS/ ANTI-PIRACY BOATS

  • DOWNLOAD MIL/PRO BROCHURE

Watch The Video

OCEAN CRAFT MARINE MILITARY BOATS

Ocean Craft Marine’s Military Grade Rigid Hull Inflatable Boats (RHIBs) are designed and built for the demanding needs of today’s military mariners. Mission survivability and mission success are the bedrock principles that guide our team in constructing boats that exceed the most demanding needs of today’s military fighters.

Whether you need a Navy Patrol boat, a Special Operations Assault Vessel, an Anti-Piracy interdiction craft or a Riverine Combat Craft, we promise to deliver an outstanding product that is built to perform and achieve. We work closely with all our military customers to continuously improve and develop our designs to guarantee every new Ocean Craft Marine Boat exhibits the latest innovation in the military technology.


  • Fiberglass boat or Aluminium boat.
  • Air filled tubes or our exclusive Hyb foam® tubes.
  • Hypalon or PU tubes.
  • Stern-notch launch/recovery capabilities and multiple davit or single lifting point arrangements.
  • Customizable deck and seating arrangements.
  • Amphibious capabilities available.

Our Military boats are purposefully over-built for extreme endurance and exceptional operation in all conditions.

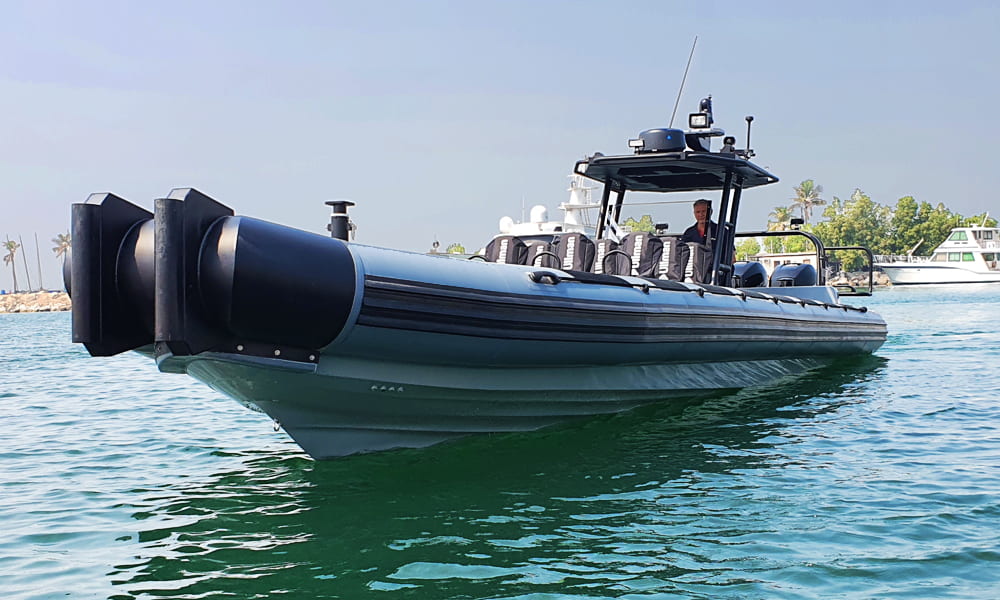

Navy / Coast Guard Boats

Ocean Craft Marine’s Navy and Coast Guard RIB Boats are built to exceed all these requirements. Our Coast Guard RIB Boats are configured for the special mission profiles of homeland security, Harbor Patrols, harbor defense, maritime law enforcement patrols, marine environmental protection and search and rescue operations. Our Navy boats are constructed to the most complex specifications for the specific mission requirements.

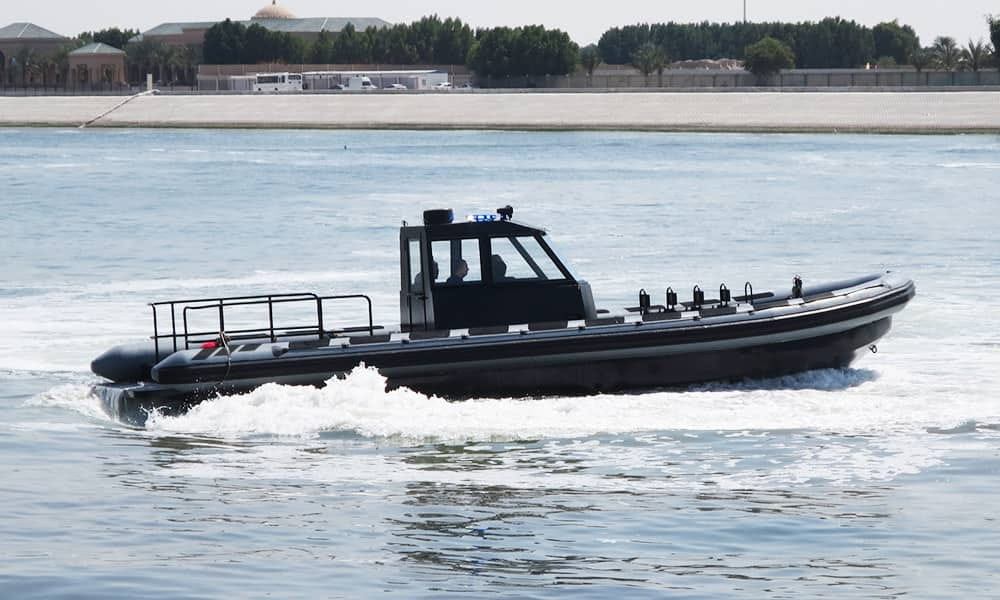

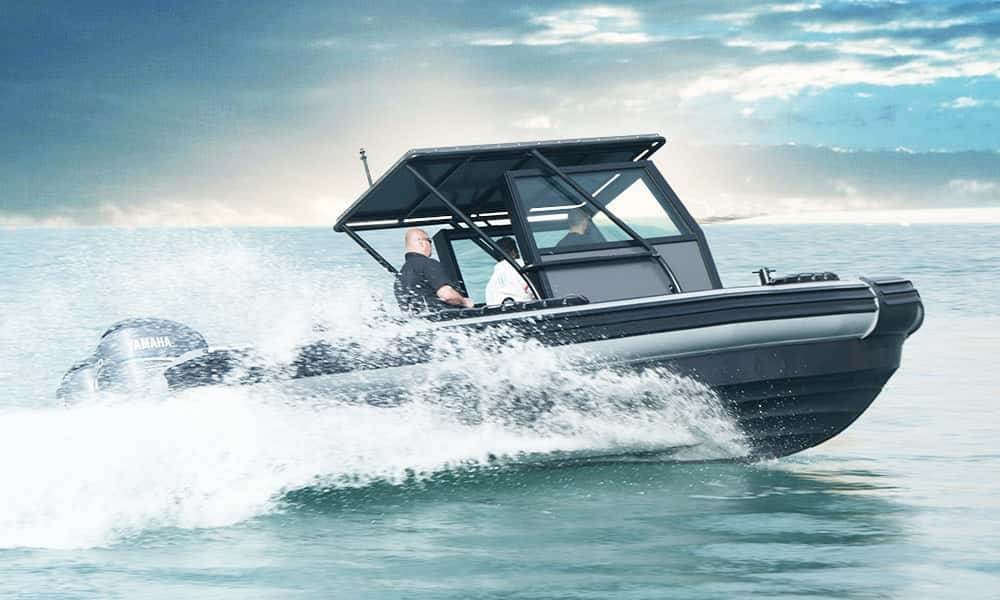

Riverine Boats

The Ocean Craft Marine Riverine Boats are specifically designed for the arduous shoal draft riverine environment. The primary mission of the Riverine Command Boat (RCB) is to maintain overt dominance of rivers and inland waterways, providing tactical agility and a weapon’s platform during insertion and extraction of special operations forces in the riverine and near-shore environments. Ocean Craft Marine’s Riverine Command Boats are fast, have exceptional manoeuvrability and are designed with shallow draft capabilities. They can be outfitted for command and control operations, humanitarian relief, Search and Rescue and a formidable weapons platforms.

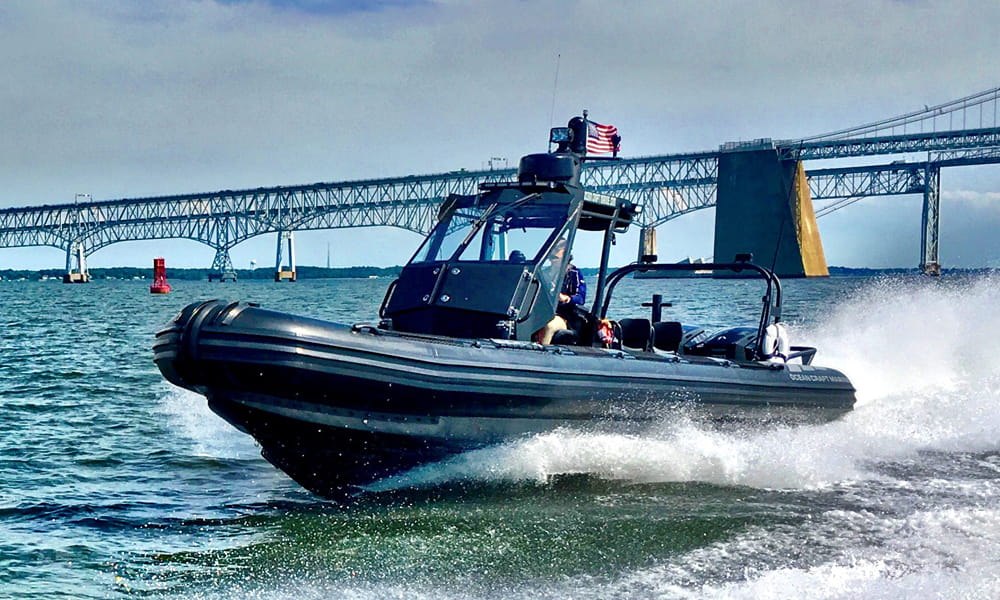

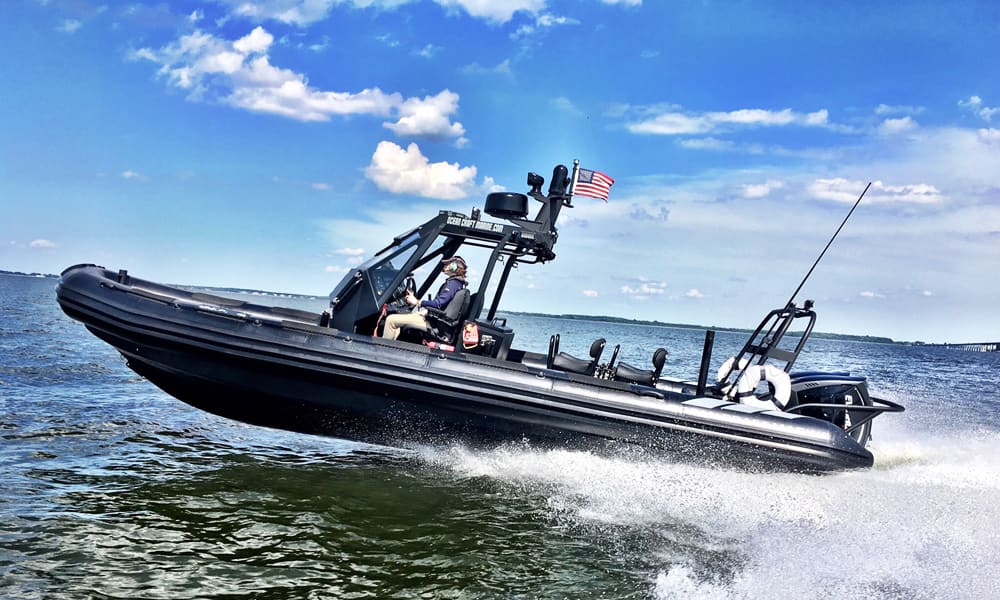

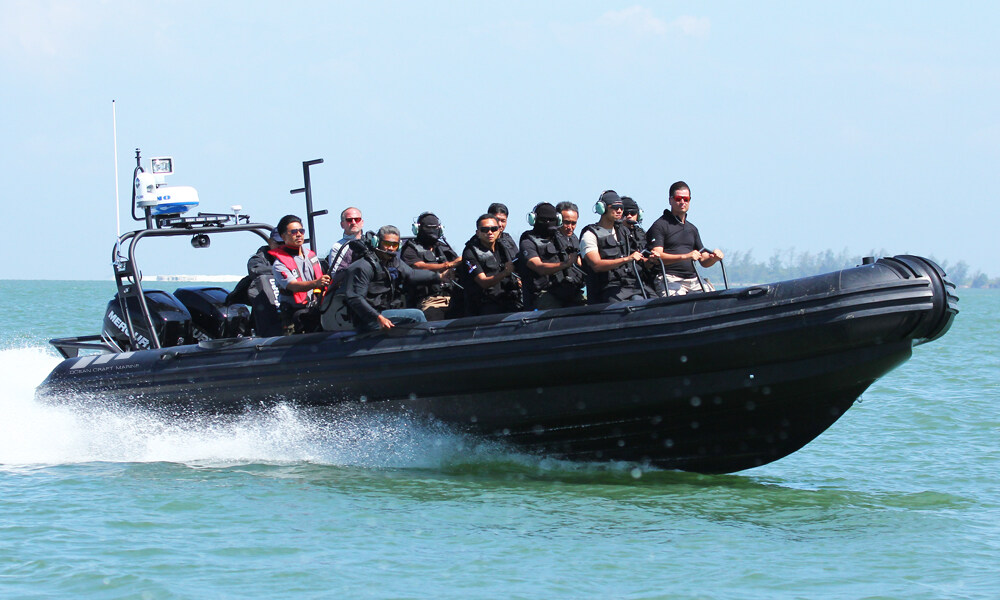

Special Ops/ Anti-piracy boats

Ocean Craft Marine is a renowned supplier of police boats to law enforcement agencies across the country. Our Special Operations & Anti-Piracy boats are engineered for the complex demands of long-duration missions, high-speed vessel interdiction operations and non-compliant boarding team operations.Our Special Operations & Anti-Piracy boats are built to be fast, and equipped for armed Vessel Boarding Search and Seizure takedowns, while our Fast Patrol vessels offer maximum mission range, crew comfort and endurance. We also build smaller crafts with deck-mounted crew-serve weapons systems, thermal and infrared camera systems and top notch communication systems.

Customize your boat:

Whether the RIB will be employed as a patrol boat, riverine craft, assault RIB, anti-piracy vessel, or for any other purpose, we work together with our customers to build a boat with all the capabilities required to achieve the mission requirements.Depending on the targeted purpose, we provide a variety of alternatives and combinations.When choosing your RIB Boat, you have the option of Fiberglass or Aluminium hull.

MISSION

SPECIFIC OPTIONS

TECHNICAL

SPECIFICATIONS

12 M
9.5 M
8.5 M
7.2 M
6.5 M

12 M

Length Overall
12.2 m – 40′

Beam Overall
3.75 m – 12’4″

Lightship Weight
5,544 kg – 12,222 Ibs

Payload
2,742 kg – 6,045 Ibs

Collar
Air or Foam

Tube Diameter
0.56 m – 1’10”

No of Air Chambers
9

Rec. Power
2×350 Hp

Max. Power Allowed
2×350 Hp

Max. Speed
129 km/h – 80 mph

Max. Fuel Capacity
298 US Gal – 1130 Ltr

No of Pax
15

Propulsion
Outboard / Inboard

Classification
B

9.5 M

Length Overall
9.7 m – 31’10”

Beam Overall
3.17 m – 10’5″

Lightship Weight
2,580 kg – 5,688 Ibs

Payload
1,950 kg – 4,299 Ibs

Collar
Air or Foam

Tube Diameter
0.56 m – 1’10”

No of Air Chambers
7

Rec. Power
2×250 Hp

Max. Power Allowed
2×400 Hp

Max. Speed
121 km/h – 75 mph

Max. Fuel Capacity
197 US Gal – 746 Ltr

No of Pax
15

Propulsion
Outboard / Inboard

Classification
B

8.5 M

Length Overall
8.8 m – 28’10”

Beam Overall
3.17 m – 10’5″

Lightship Weight
2,312 kg – 5,097 Ibs

Payload
1,750 kg – 3,858 Ibs

Collar
Air or Foam

Tube Diameter
0.56 m – 1’10”

No of Air Chambers
5

Rec. Power
2×200 Hp

Max. Power Allowed
2×300 Hp

Max. Speed
118 km/h – 73 mph

Max. Fuel Capacity
158 US Gal – 600 Ltr

No of Pax
13

Propulsion
Outboard / Inboard

Classification
C

7.2 M

Length Overall
7.5 m – 24’7″‘

Beam Overall
2.5 m – 8’2″

Lightship Weight
1,360 kg – 2,998 Ibs

Payload
1,169 kg – 2,577 Ibs

Collar
Air or Foam

Tube Diameter
0.45 m – 1’6″

No of Air Chambers
5

Rec. Power
200 Hp

Max. Power Allowed
300 Hp

Max. Speed
89 km/h – 55 mph

Max. Fuel Capacity
60 US Gal – 255 Ltr

No of Pax
10

Propulsion
Outboard / Inboard

Classification
C

6.5 M

Length Overall
6.7 m – 22′

Beam Overall
2.52 m – 8’3″

Lightship Weight
1,369 kg – 3,018 Ibs

Payload
1,185 kg – 2,612 Ibs

Collar
Air or Foam

Tube Diameter
0.45 m – 1’6″

No of Air Chambers
5

Rec. Power
150 Hp

Max. Power Allowed
250 Hp

Max. Speed
93 km/h – 58 mph

Max. Fuel Capacity
100 US Gal – 380 Ltr

No of Pax
9

Propulsion
Outboard / Inboard

Classification
B

13 M
11.5 M
9.5 M
8.5 M
7.6 M
6.5 M

13 M

Length Overall
12.5 m – 41′

Beam Overall
3.9 m – 12’8″

Lightship Weight
6,765 kg – 14,914 Ibs

Payload
2,315 kg – 5,104  Ibs

Collar
Hyb Foam®

Tube Diameter
0.56 m – 1’10”

Rec. Power
3×350 hp

Max. Power Allowed
3×450 hp

Max. Speed
109 km/h – 68 mph

Max. Fuel Capacity
317 US Gal – 1200 Ltr

No of Pax
18

Propulsion
Outboard / Inboard

11.5 M

Length Overall
11.6 m – 38′

Beam Overall
3.95 m – 12’12”

Lightship Weight
4,745 kg – 10,461  Ibs

Payload
2,195 kg – 4,839 Ibs

Collar
Hyb Foam®

Tube Diameter
0.56 m – 1’10”

Rec. Power
3×350 hp

Max. Power Allowed
3×400 hp

Max. Speed
102 km/h – 63 mph

Max. Fuel Capacity
317 US Gal – 1200 Ltr

No of Pax
14

Propulsion
Outboard / Inboard

9.5 M

Length Overall
9.5 m – 31’2″

Beam Overall
3.17 m – 10’5″

Lightship Weight
3,520 kg – 7,760  Ibs

Payload
1,430 kg – 3,153 Ibs

Collar
Hyb Foam®

Tube Diameter
0.56 m – 1’10”

Rec. Power
2×225 hp

Max. Power Allowed
2×300 Hp

Max. Speed
102 km/h – 63 mph

Max. Fuel Capacity
158 US Gal – 600Ltr

No of Pax
12

Propulsion
Outboard / Inboard

8.5 M

Length Overall
8.5 m – 27’11”

Beam Overall
3.17 m – 10’5″

Lightship Weight
3,060 kg – 6,746 Ibs

Payload
1,210 kg – 2,668 Ibs

Tube Diameter
Hyb Foam®

Collar
0.56 m – 1’10”

Rec. Power
2×225 hp

Max. Power Allowed
2×300 Hp

Max. Speed
102 km/h – 63 mph

Max. Fuel Capacity
120 US Gal – 455 Ltr

No of Pax
10

Propulsion
Outboard / Inboard

7.6 M

Length Overall
7.6 m – 24’11”

Beam Overall
2.59 m – 8’6″

Lightship Weight
2,207 kg – 4,866 Ibs

Payload
988 kg – 2,178  Ibs

Collar
Hyb Foam®

Tube Diameter
0.45 m – 1’6″

Rec. Power
2×150 hp

Max. Power Allowed
2×225 Hp

Max. Speed
100 km/h – 62 mph

Max. Fuel Capacity
66 US Gal – 250 Ltr

No of Pax
8

Propulsion
Outboard / Inboard

6.5 M

Length Overall
6.5 m – 21’4″

Beam Overall
2.59 m – 8’6″

Lightship Weight
1,440 kg – 3,175 Ibs

Payload
640 kg  – 1,411 Ibs

Collar
Hyb Foam®

Tube Diameter
0.45 m – 1’6″

Rec. Power
150 hp

Max. Power Allowed
250 hp

Max. Speed
89 km/h – 55 mph

Max. Fuel Capacity
59 US Gal – 225 Ltr

No of Pax
6

Propulsion
Outboard / Inboard

5.8 M
4.7 M
6.0 M
5.1 M
4.8 M
4.2 M
3.5 M
3.2 M
2.8 M

5.8 M

Length Overall
5.85 m – 19’2″

Beam Overall
2.53 m – 8’3″

Lightship Weight
357 kg – 787 Ibs

Payload
1,300 kg – 2,866 Ibs

Collar
Air only

Tube Diameter
0.61 m – 2″

No of Air Chambers
5

Rec. Power
50 hp

Max. Power Allowed
65 Hp

Max. Speed
25 km/h – 15 mph

Max. Fuel Capacity
Portable

No of Pax
7

4.7 M

Length Overall
4.7 m – 15’5″

Beam Overall
2.53 m – 8’3″

Lightship Weight
313 kg – 690 Ibs

Payload
1,050 kg – 2,315 Ibs

Collar
Air only

Tube Diameter
0.61 m – 2″

No of Air Chambers
5

Rec. Power
50 hp

Max. Power Allowed
65 Hp

Max. Speed
28 km/h – 17 mph

Max. Fuel Capacity
Portable

No of Pax
9

6.0 M

Length Overall
6.0 m – 19’8″

Beam Overall
2.34 m – 7’8″

Lightship Weight
363 kg – 800 Ibs

Payload
1,350 kg – 2,976 Ibs

Collar
Air only

Tube Diameter
0.48 m – 1’7″

No of Air Chambers
5

Rec. Power
50 hp

Max. Power Allowed
65 Hp

Max. Speed
25 km/h – 15 mp

Max. Fuel Capacity
Portable

No of Pax
12

5.1 M

Length Overall
5.13 m – 16’10

Beam Overall
2.34 m – 7’8″

Lightship Weight
328 kg – 723 Ibs

Payload
1,200 kg – 2,645 Ibs

Collar
Air only

Tube Diameter
0.48 m – 1’7″

No of Air Chambers
5

Rec. Power
50 hp

Max. Power Allowed
65 Hp

Max. Speed
26 km/h – 16 mph

Max. Fuel Capacity
Portable

No of Pax
11

4.8 M

Length Overall
4.80 m – 15’9″

Beam Overall
2.34 m – 7’8″

Lightship Weight
316 kg – 697 Ibs

Payload
1,150 kg – 2,535 Ibs

Collar
Air only

Tube Diameter
0.48 m – 1’7″

No of Air Chambers
4

Rec. Power
50 hp

Max. Power Allowed
65 Hp

Max. Speed
28 km/h – 17 mph

Max. Fuel Capacity
Portable

No of Pax
10

4.2 M

Length Overall
4.22 m – 13’10”

Beam Overall
1.84 m – 6′

Lightship Weight
260 kg – 573 Ibs

Payload
900 kg – 1.984 Ibs

Collar
Air only

Tube Diameter
0.45 m – 1’6″

No of Air Chambers
3

Rec. Power
40 hp

Max. Power Allowed
55 Hp

Max. Speed
22 km/h – 14 mph

Max. Fuel Capacity
Portable

No of Pax
7

3.5 M

Length Overall
3.53 m – 11’7″

Beam Overall
1.84 m – 6′

Lightship Weight
238 kg – 525 Ibs

Payload
700 kg – 1,543 Ibs

Collar
Air only

Tube Diameter
0.45 m – 1’6″

No of Air Chambers
3

Rec. Power
30 hp

Max. Power Allowed
40 Hp

Max. Speed
19 km/h – 12 mph

Max. Fuel Capacity
Portable

No of Pax
5

3.2 M

Length Overall
3.22 m – 10’7″

Beam Overall
1.84 m – 6′

Lightship Weight
158 kg – 348 Ibs

Payload
500 kg – 1,102 Ibs

Collar
Air only

Tube Diameter
0.45 m – 1’6″

No of Air Chambers
3

Rec. Power
25 hp

Max. Power Allowed
30 Hp

Max. Speed
18 km/h – 11 mph

Max. Fuel Capacity
Portable

No of Pax
5

2.8 M

Length Overall
2.82 m – 9’3″

Beam Overall
1.84 m – 6′

Lightship Weight
146 kg – 321 Ibs

Payload
375 kg – 827 Ibs

Collar
Air only

Tube Diameter
0.45 m – 1’6″

No of Air Chambers
3

Rec. Power
20 hp

Max. Power Allowed
25 Hp

Max. Speed
17 km/h – 10 mph

Max. Fuel Capacity
Portable

No of Pax
4
