OCEAN CRAFT MARINE AMPHIBIOUS BOATS

Our Professional Amphibious boats accelerate response time and offer accessibility to areas that were previously considered inaccessible, allowing first responders to take action faster and more effectively.

More “then” just a boat with wheels, these versatile RHIBs are powered by Ocean Craft Marine’s advanced AAS-100 Amphibious system, comprised of four independently motorized retractable and steerable wheels that offer high stability on land combined with exceptional on-water performance of an Ocean Craft Marine boat.

  • DOWNLOAD AMPHIBIOUS BROCHURE

Watch The Video
1

Upgrade option on all OCM boats ranging from 7.1 m to 12 m.

2

Outboard or Inboard powered boats.

3

GRP or Aluminum Hull boats.

Why an Ocean Craft Marine Amphibious Boat?

Access to areas of high tidal range
Increased patrolling areas

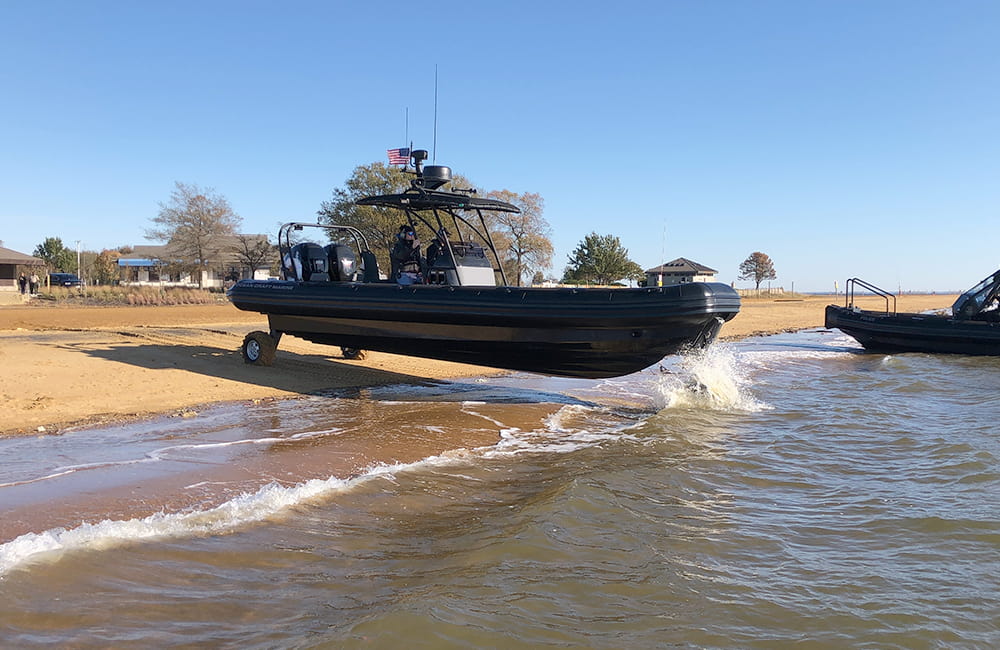

Straight driving onto any beach
Accessibility to the shallowest water
Ease of entry to previously inaccessible areas operation
Extremely fast deployment response: Rapid transition between land and water

TECHNICAL

SPECIFICATIONS

9.8 M
9.0 M
8.4 M
7.1 M

9.8 M

Length Overall
10.3 m – 33’10”

Beam Overall
3.17 m – 10’5″

Lightship Weight
3,210 kg – 7,077 Ibs

Payload
1,950 kg – 4,299 Ibs

Collar
Air or Foam

Tube Diameter
0.56 – 1’10”

No of Air Chambers
8

Rec. Power
2×250 Hp

Max. Power Allowed
2×400 Hp

Max. Speed
85 km/h – 53 mph

Max. Fuel Capacity
115 US Gal – 435 Ltr

No of Pax
15 on water – 5 on land

Classification
Category B, Offshore

9.8 M

Length Overall
10.3 m – 33’10”
Beam Overall
3.17 m – 10’5″
Lightship Weight
3,210 kg – 7,077 Ibs
Payload
1,950 kg – 4,299 Ibs
Collar
Air or Foam
Tube Diameter
0.56 – 1’10”

No of Air Chambers
8
Rec. Power
2×250 Hp
Max. Power Allowed
2×400 Hp
Max. Speed
85 km/h – 53 mph
Max. Fuel Capacity
115 US Gal – 435 Ltr
No of Pax
15 on water – 5 on land
Classification
Category B, Offshore

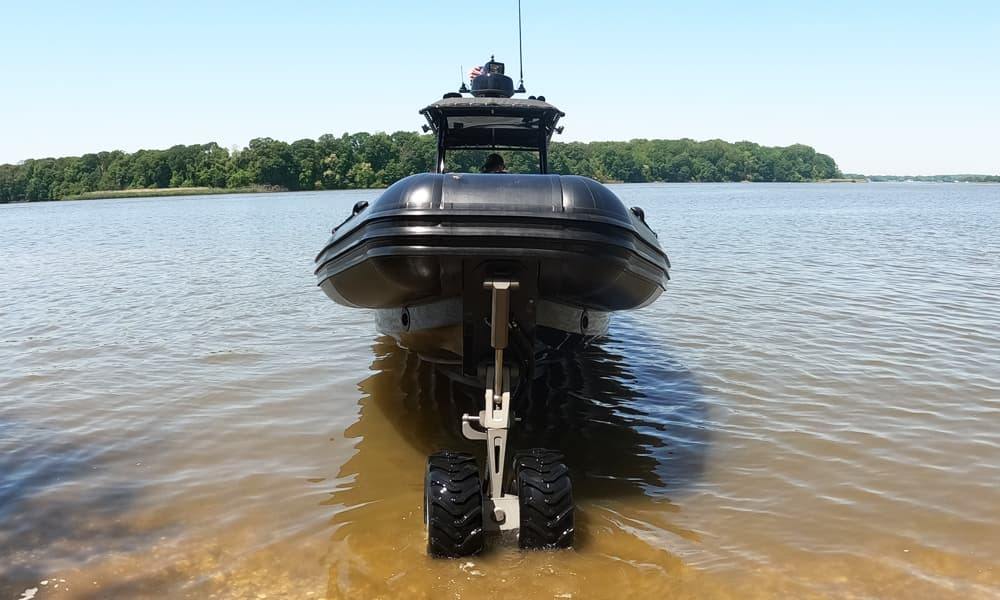

9.0 M

Length Overall
9.25 m – 30’4″

Beam Overall
3.17 m – 10’5″

Lightship Weight
2,973 kg – 6,554 Ibs

Payload
1,650 kg – 3,638 Ibs

Collar
Air or Foam

Tube Diameter
0.56 – 1’10”

No of Air Chambers
8

Rec. Power
2×200 Hp

Max. Power Allowed
2×350 Hp

Max. Speed
80 km/h – 50 mph

Max. Fuel Capacity
100 US Gal – 1135 Ltr

No of Pax
12 on water – 8 on land

Classification
Category C, Offshore

9.0 M

Length Overall
9.25 m – 30’4″
Beam Overall
3.17 m – 10’5″
Lightship Weight
2,973 kg – 6,554 Ibs
Payload
1,650 kg – 3,638 Ibs
Collar
Air or Foam
Tube Diameter
0.56 – 1’10”

No of Air Chambers
8
Rec. Power
2×200 Hp
Max. Power Allowed
2×350 Hp
Max. Speed
80 km/h – 50 mph
Max. Fuel Capacity
100 US Gal – 1135 Ltr
No of Pax
12 on water – 8 on land
Classification
Category C, Offshore

8.4 M

Length Overall
8.8 m – 28’11”

Beam Overall
2.55 m – 8’4″

Lightship Weight
2,486 kg – 5,481 Ibs

Payload
1,441 kg – 3,177 Ibs

Collar
Air or Foam

Tube Diameter
0.45 m – 1’6″

No of Air Chambers
6

Rec. Power
200 Hp

Max. Power Allowed
350 Hp

Max. Speed
80 km/h – 50 mph

Max. Fuel Capacity
84 US Gal – 318 Ltr

No of Pax
10 on water – 5 on land

Classification
Category B, Offshore

8.4 M

Length Overall
8.8 m – 28’11”
Beam Overall
2.55 m – 8’4″
Lightship Weight
2,486 kg – 5,481 Ibs
Payload
1,441 kg – 3,177 Ibs
Collar
Air or Foam
Tube Diameter
0.45 m – 1’6″

No of Air Chambers
6
Rec. Power
200 Hp
Max. Power Allowed
350 Hp
Max. Speed
80 km/h – 50 mph
Max. Fuel Capacity
84 US Gal – 318 Ltr
No of Pax
10 on water – 5 on land
Classification
Category B, Offshore

7.1 M

Length Overall
7.4 m – 24’3″

Beam Overall
2.52 m – 8’3″

Lightship Weight
1,772 kg – 3,907 Ibs

Payload
1,185 kg – 2,612 Ibs

Collar
Air or Foam

Tube Diameter
0.45 m – 1’6″

No of Air Chambers
6

Rec. Power
150 Hp

Max. Power Allowed
250 Hp

Max. Speed
74 km/h – 46 mph

Max. Fuel Capacity
57 US Gal – 216 Ltr

No of Pax
9 on water – 8 on land

Classification
Category B, Offshore

7.1 M

Length Overall
7.4 m – 24’3″
Beam Overall
2.52 m – 8’3″
Lightship Weight
1,772 kg – 3,907 Ibs
Payload
1,185 kg – 2,612 Ibs
Collar
Air or Foam
Tube Diameter
0.45 m – 1’6″

No of Air Chambers
6
Rec. Power
150 Hp
Max. Power Allowed
250 Hp
Max. Speed
74 km/h – 46 mph
Max. Fuel Capacity
57 US Gal – 216 Ltr
No of Pax
9 on water – 8 on land
Classification
Category B, Offshore

Amphibious Boats

GALLERY

AMPHIBIOUS SYSTEM

SPECIFICATION

SYSTEM AAS-100 (Fuel) AAS-100E (Electric)
Maximum size of boat 10m – 32’8” 10m – 32’8”
Speed on land 10kph (4WD) – 6.2 mph 10 kph (4WD) – 6.2 mph
System motor power 35 HP 40 HP
Motor cooling system Air cooled Air cooled
Maximum torque 2,582 ft-lb – 3,500 Nm 2,582 ft-lb – 3,500 Nm
Size of tires 26” x 12” 26” x 12”
Weight of the system 600 kg – 1,323 lbs 680 kg – 1,500 lbs
  • Image

    4 WD

High stability on land
Custom designed tires for better traction
4 wheels independently driven by 4 independent motors
Excellent traction as weight of the boat is divided on 4 wheels
Differential lock; allows redistribution of power on other wheels
Custom rim manufactured with offset to place load in optimum position over hydraulic motor bearings
26 inch tires
Wheels are marine coated

  • Image

    SAFETY

Hydraulic Braking System

  • Image

    FBW- Fly-by-wire

All controls are digital
Operation extremely easy and effortless

  • Image

    QUALITY

1 year warranty
Easy to maintain
All parts are marine anodized

  • Image

    G2 Design

Advanced design using PLC enabling full system monitoring

  • Image

    PERFORMANCE

Easy to maintain
Reaches speed of 9.0km/hr on land
Can run continuously for 1 hour for a distance of 10 km

OCM AMPHIBIOUS

SYSTEM (AAS-100)

AAS-100(FUEL)

Hydraulic Power Unit

  • Briggs and Stratton 30 kW (40HP), EFI engine
    equipped with “Control by Wire” (CBW). CBW
    technology removes the need for mechanical cable
    connections which provides greater installation
    options and “smart” stability of operation.

Other features of the engine

  • Equipped with an oxygen sensor to reduce emissions
  • Engine speed monitoring for stability of operation
  • Consistent, easy starting
  • Superior fuel economy
  • On-board diagnostics for remote fault finding
AAS-100E (ELECTRIC)

Power Unit

  • A Brushless 48 VDC electric motor equipped with “Control by Wire” (CBW). CBW technology removes the need for mechanical cable connections which provides greater installation options and “smart” stability of operation.

Battery Pack

  • The AAS-100E battery pack consists of 4 batteries that provide a total of 12.4 kwh.

PROGRAMMABLE LOGIC CONTROLLER (PLC)

SYSTEM (AAS-100)

All functions of the system are controlled via a PLC allowing:

  • Full system monitoring and on-board diagnostic capabilities
  • Remote monitoring of system performance and service support
  • Self centering of steering wheel assembly
  • Full system monitoring and on-board diagnostic capabilities
  • Brakes with auto on feature if no drive signal received after 5 secs
  • Auto engine speed control for wheel retraction/extension
  • CAN Bus system. Sending control signals as data.

User Interface (UI)

  • There are three electronic UI components i.e. joystick, keypad and “System Fault” LED
  • An optional “system scanner” is available

4-Wheel drive system

  • Superior traction and less ground pressure – weight spread over four wheels
  • 1 year full warranty on the 4 Wheel-Drive system or 30 hours whichever occurs first for the recreational users / 90 consecutive days on the 4 Wheel-Drive system for commercial or professional use
