FIRE RESCUE BOATS

9.5 SAR

9.5 SAR

VESSEL GRP HULL

  • OCM 9.5m SAR RHIB “Turn-Key Ready” GRP Constructed in Red Color (Fire retardant Resin and Gelcoat)

ENGINE

  • Single Mercury Verado F350 V8 XL Outboard Engine with DTS Fly By Wire binnacle-mount Remote Control, Electro-Hydraulic Steering system, Vessel View 7”, Steering Wheel, Battery, Stainless Steel Propeller, etc.

TUBE SET

  • Tube-Set Spec. Military Thickness, 1670 Dtex. “Rescue Red Color” w/ Black Markings; Seven (7) compartmentalized chambers w/ inflation and over-pressure relief valves
  • Molded Rubber Handles on tube-set
  • External & Internal Safety Grab Lifelines
  • Neoprene Step Treads (all- around)
  • Triple Fendering “Sharks-Tooth” Rub-Strake on Tube-Set
  • Rescue /Diver-Notch(s) on Tube Set
  • Hypalon Fabric, Black Color Organizational

DECK / VESSEL

  • Anchor locker
  • 3 U-bolts (1 on Bow, 2 on Transom)
  • 12VDC Air Inflation Pump
  • Approved Aluminum Fuel Tank 80 US Gal.

LIFTING

  • Stainless Steel Heavy Duty Lifting Points (2 on Foredeck & 2 on Aft deck)

CONSOLE / SEATING

  • Two-Man Futura Console W/ Forward Seat, w/Grab Rail and Windscreen
  • Jockey Style Straddle Seats w/Top handles for operator and co-pilot and a storage compartment.

DECK / STRUCTURE

  • Heavy Duty T-Top
  • Forward Heavy Duty Bollard/Tow Post
  • Aft Heavy Duty Tow Post
  • Aft A-Frame Arch with platform and foldable ladder

LIFE SAFETY / SAR

  • Offshore 95 Compass Dash Mounted
  • USCG Approved Fire Extinguishers
  • 20” USCG Approved Throwable Ring Buoy
  • Rescue Throw Ropes

ELECTRONICS

  • Automatic Electric Bilge Pump High Capacity with Float Switch
  • 12VDC Electric Distribution Bus/System with Breaker Panels & Battery Isolators
  • Batteries AGM Battery Banks, Trays, Selector Switches
  • Automotive Style Accessory Receptacle 12VDC & 12VDC USB

ELECTRONICS / COMMS

  • Garmin® 210 VHF Radio with DSC, AIS, and Loud Hailer
  • VHF Antenna and Heavy Duty Mounting Base
  • Whelen® Siren / PA System

ELECTRONICS / NAV

  • Garmin 942xs Plus color GPSMAP with Chirp Sonar, w/ Garmin GT23M-TM Transducer

LIGHTING

  • Lumitec LED Tri-Color Lighting on T-Top
  • LED Vessel Navigation Lights IAW COLREGS
  • LED Diffused, Flood lights/ “Scene-Lights” (Five)
  • LED Law Enforcement Light Bar (LED Color Red)
  • Remote Search Light with joy stick control

PACKAGING

  • Packaging and Shrink-wrap

PROTECTION

  • Anti-Fouling Bottom Paint and Barrier Coating

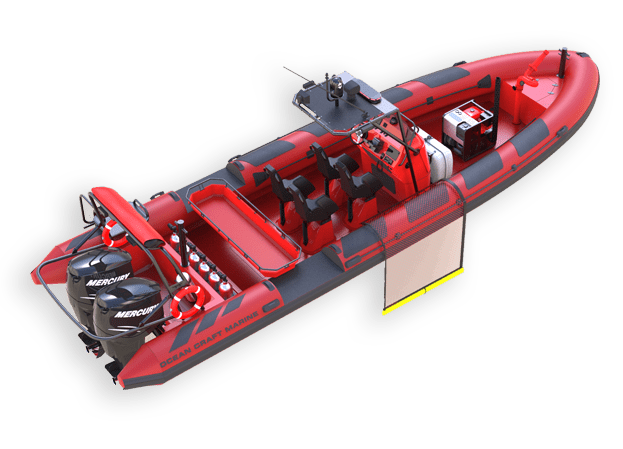

9.5 SAR S

9.5 SAR S

VESSEL GRP HULL

  • OCM 9.5m SAR RHIB “Turn-Key Ready” GRP Constructed in Red Color (Fire retardant Resin and Gelcoat)

ENGINE

  • Twin Mercury 4-Stroke F200 V6 XL/CXL Outboard Engine with DTS Fly By Wire binnacle-mount Remote Control, Hydraulic Steering system, Vessel View 7”, Steering Wheel, Tie Bar, Batteries, Stainless Steel Propeller, etc.
  • Single Mercury Verado F350 V8 XL Outboard Engine with DTS Fly By Wire binnacle-mount Remote Control, Electro-Hydraulic Steering system, Vessel View 7”, Steering Wheel, Battery, Stainless Steel Propeller, etc.
  • Outboard Engines Guard.

TUBE SET

  • Military Grade Hypalon 1670 Dtex Tube filled with our unique Hyb Foam® technology (PE closed cell foam) in “Rescue Red Color” w/Black Markings.
  • Tube-Set Spec. Military Thickness, 1670 Dtex. “Rescue Red Color” w/ Black Markings; Seven (7) compartmentalized chambers w/ inflation and over-pressure relief valves
  • Molded Rubber Handles on tube-set
  • External & Internal Safety Grab Lifelines
  • Neoprene Step Treads (all- around)
  • Triple Fendering “Sharks-Tooth” Rub-Strake on Tube-Set
  • Rescue /Diver-Notch(s) on Tube Set
  • Hypalon Fabric, Black Color Organizational

DECK / VESSEL

  • Dive Bottle Rack (for 6 Bottles).
  • Anchor locker
  • 3 U-bolts (1 on Bow, 2 on Transom)
  • 12VDC Air Inflation Pump
  • Approved Aluminum Fuel Tank 80 US Gal.
  • Full Length Keel Guard (From Bow to Transom).

LIFTING

  • Stainless Steel Heavy Duty Lifting Points (2 on Foredeck & 2 on Aft deck)

CONSOLE / SEATING

  • Ullman BISCAYA Jockey Suspension Seats w/side handles (for Operator and Co-Pilot).
  • Two-Man Futura Console W/ Forward Seat, w/Grab Rail and Windscreen
  • Jockey Style Straddle Seats w/Top handles for operator and co-pilot and a storage compartment.

DECK / STRUCTURE

  • Self-Righting System, foldable ladder and a platform on the Aft A-Frame Arch.
  • Heavy Duty T-Top
  • Forward Heavy Duty Bollard/Tow Post
  • Aft Heavy Duty Tow Post
  • Aft A-Frame Arch
  • Tube-Set Mounted Folding Dive-Ladder

LIFE SAFETY / SAR

  • Life Equipments Fasteners x4.
  • Junkin® Rescue-Litter/Stokes Basket w/ Flotation-Collar and Lifting-Sling.
  • Offshore 95 Compass Dash Mounted
  • USCG Approved Fire Extinguishers
  • 20” USCG Approved Throwable Ring Buoy
  • Rescue Throw Ropes
  • MARSARS® (Parbuckling) Man Overboard (MOB) Rescue Net.
  • REVERE USCG/SOLAS Life Raft 6-person & Housing for mass-casualty rescues.
  • Lashing Points x4.

ELECTRONICS

  • Automatic Electric Bilge Pump High Capacity with Float Switch
  • 12VDC Electric Distribution Bus/System with Breaker Panels & Battery Isolators
  • Batteries AGM Battery Banks, Trays, Selector Switches
  • Automotive Style Accessory Receptacle 12VDC & 12VDC USB

ELECTRONICS / COMMS

  • Garmin® 210 VHF Radio with DSC, AIS, and Loud Hailer
  • VHF Antenna and Heavy Duty Mounting Base
  • Whelen® Siren / PA System

ELECTRONICS / NAV

  • Garmin 942xs Plus color GPSMAP with Chirp Sonar, w/ Garmin GT23M-TM Transducer
  • FLIR M232 Thermal IP Camera 9Hz 320×240 with Joystick Control Unit (JCU3).
  • McMurdo Smartfind EPIRB E8.

LIGHTING

  • Portable Rechargeable Handheld Search Light.
  • Lumitec LED Tri-Color Lighting on T-Top
  • LED Vessel Navigation Lights IAW COLREGS
  • LED Diffused, Flood lights/ “Scene-Lights” (Five)
  • LED Law Enforcement Light Bar (LED Color Red)
  • Remote Search Light with joy stick control

PACKAGING

  • Packaging and Shrink-wrap

PROTECTION

  • Anti-Fouling Bottom Paint and Barrier Coating

PROTECTION

  • Priced on Request
